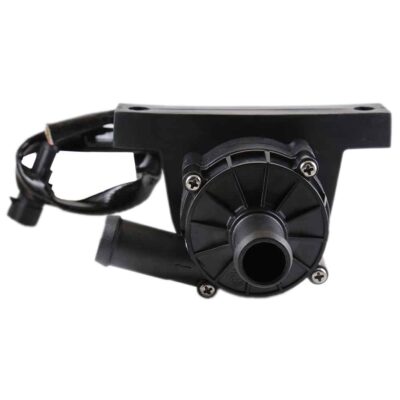

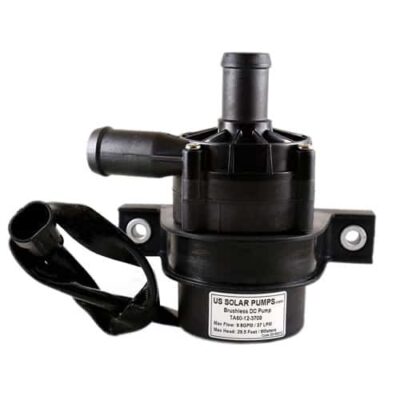

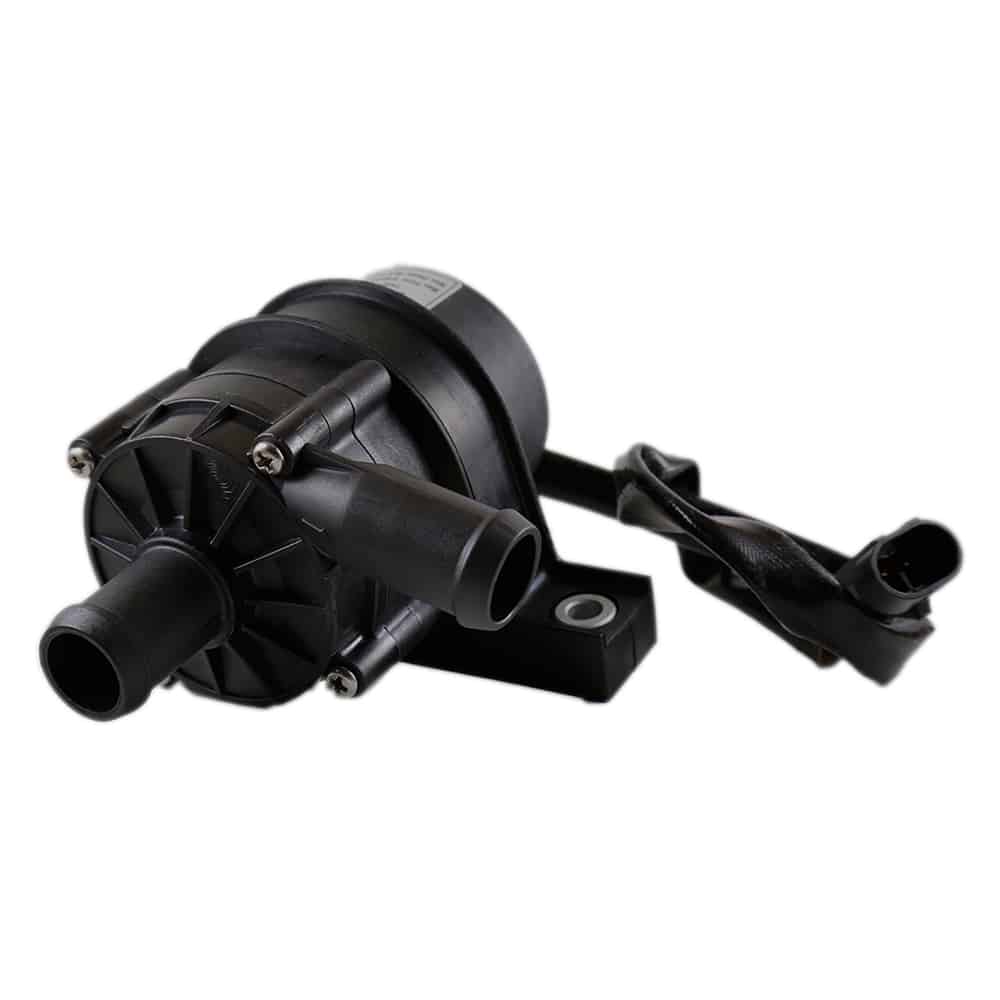

A6 Automotive / Marine Pump with PWM

$165.10

Available Options:

A6 12V 34L PWM
  • 12 Volt – 55 Watt – 4.6 Amps
  • Max Flow Rate – 8.9 GPM / 37 LPM
  • Max Water Head – 9 M / 29.5 Feet
A6 24V 37L PWM
  • 24 Volt – 60 Watt – 2.5 Amps
  • Max Flow Rate – 9.7 GPM / 37 LPM
  • Max Water Head – 9 M / 29.5 Feet
SKU: N/A Category:

Quantity based pricing table

Description

 Download PDF for a A5 & A6 Comparison

Download PDF File

View and download STP file here

Download STP File

Specifications of A6 Automotive / Marine Pump with PWM:

  • Working Temperature Model E- 40 C – 75C / 104 F – 167 F
  • Working Temperature Standard Model 40 C – 90C / 104 F – 200 F
  • Static PSI – 58.0 / 4 Bar
  • Hose Fittings
  • Inlet / Outlet – 20mm x 20mm
  • PWM Controller

Application:

The A6 Automotive / Marine Pump with PWM can be used for most vehicle engine circulation applications. It is characterized by its unique design and is known for its specialty, high efficiency, low consumption and stable performance.

The long life brushless motor technology provides the user with a maintenance free and quiet service life. This pump is perfect for car engine circulations. It is also an excellent choice for pre-heating, parking-heating or any circulation pump application where normal circulation pump is not available.

Features:

  • Highly efficient ECM brushless DC motor
  • Can sustain a continuous 24-hour workload
  • Life expectancy of well over 20000 hours
  • Durable permanent magnetic rotor/impeller & fine ceramic shaft
  • Advanced magnetic drive technology for static-impeller
  • The motor with big machine movement optimization design, has very low temperature rise
  • Automatic polarity protection, overload protection and block protection
  • Special design to meet car vibrations and car power supply with its high peaks and unstable voltage
  • IP protection level: IP 67

 Areas of Use of the A6 Automotive / Marine Pump with PWM:

  • Packing heater
  • Motorcycles modified
  • Engine cooling system
  • Car ready-heating circulation
  • Car engine cooling circulation
  • Hot water systems
  • Automotive antifreeze circulation
  • Electric vehicles water circulation
