Description

Download the PDF for additional information about the C1D Solar Pump

View and download STP file here

Specifications of the C1D Solar Pump:

• Static PSI – 58.0 / 4 Bar
• Barbed Fittings
• Inlet / Outlet – 18mm x 18mm
• PV wired

Application:

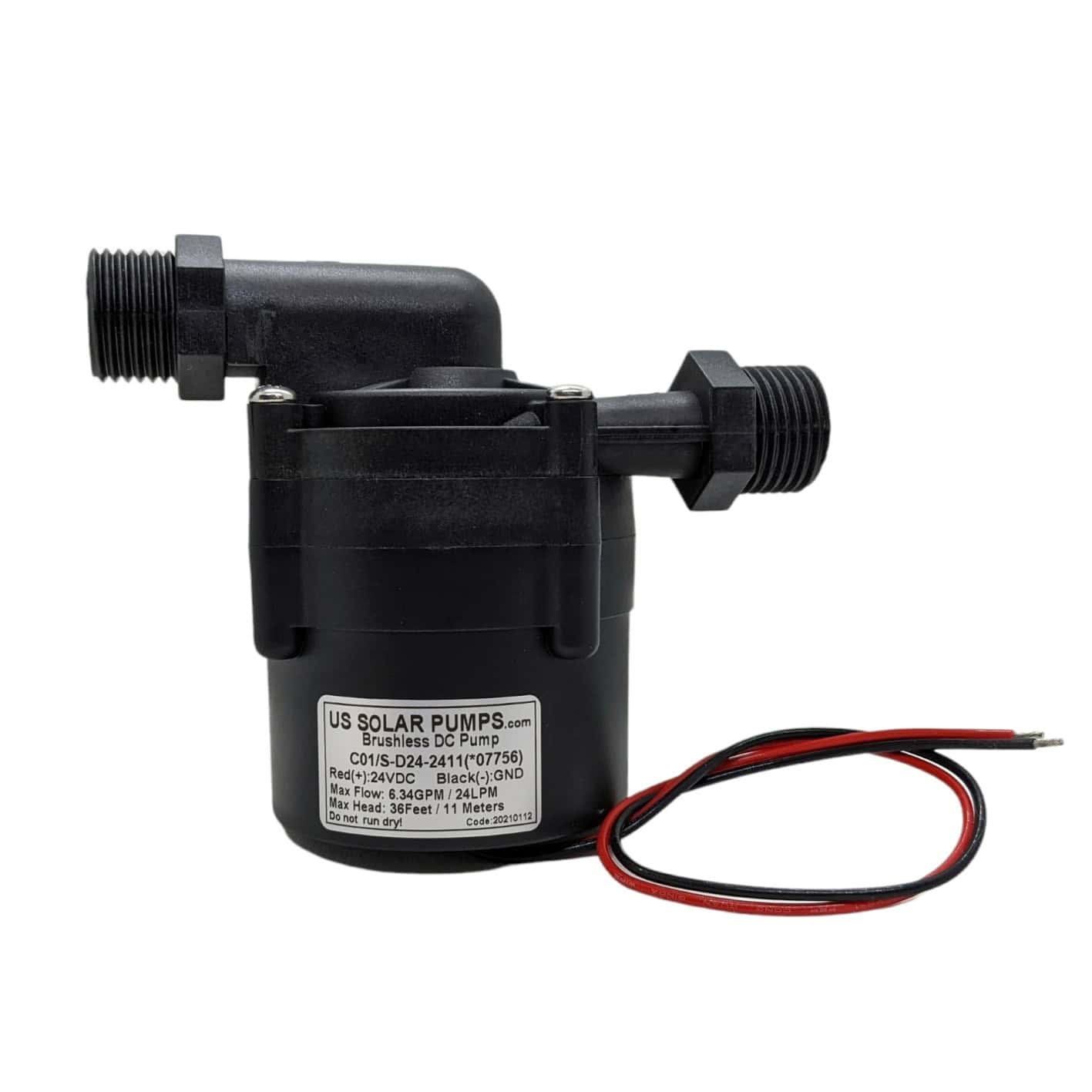

The C1D Solar Pump is part of our C series micro centrifugal pumps. It is powered by a three-phase brushless DC motor. The C series pumps are designed to be quiet, compact and lightweight.

This pump has a variety of features: it includes a seal-less design to prevent leakage and a wide range of working voltage providing stable performance.

The C1D Solar Pump is designed for general, commercial and industrial applications. Furthermore, this pump is an excellent choice for all circulation pump applications. It will pump fresh water, seawater, and other liquids. The other liquids need to be compatible with the pumps materials and that are of similar viscosity to water.

Features of the C1D Solar Pump:

• Exceptionally efficient ECM three-phase brushless DC motor
• Capable of sustaining continuous 24-hour operation with a lifespan exceeding 20,000 hours
•  Utilizes advanced magnetic drive technology
•  The rotor-impeller and shaft are tightly sealed, preventing any leakage
•  Features a single moving part: the magnetically driven rotor-impeller, spinning on a ceramic bearing
•  Highly precise performance
• Resistant to wear and tear
• Incorporates a unique Closed Impeller design, offering dynamic balance, increased efficiency, stronger pressure performance, smooth and steady flow, as well as ultra-quiet operation
•  Three-phase brushless DC pumps provide additional protection functions, including stuck impeller protection, over-voltage protection, overload protection, and over-current protection.

Areas of Use of the C1D Solar Pump:

• Water heating mattress
• Automotive air conditioning
• Hot water circulating system
• Electric cars: radiators, heaters
• Computer CPU cooling circulation
• Liquid transfer general purpose pumping
• Fountain, aquariums and larger fish ponds
• Circulating systems for homes, RV’s and boats
• Electronics Cooling Water Circulation Chiller Systems
• Cleaning equipment, purification and water treatment
