C1EA 12V 20L -topsflo pumps- 12v rv water pump - C1EA Zone 1 & 2 and Summer Loop Replacement Pump - C1EA Zone 1 & 2 Replacement Pump
C1EC 12V 20L Replacement Pump with 1/2" fittings - Zone 1 & 2 and Summer Loop Replacement Pump
Hose Clamps for C1EA - Hose Clamps for C1EC

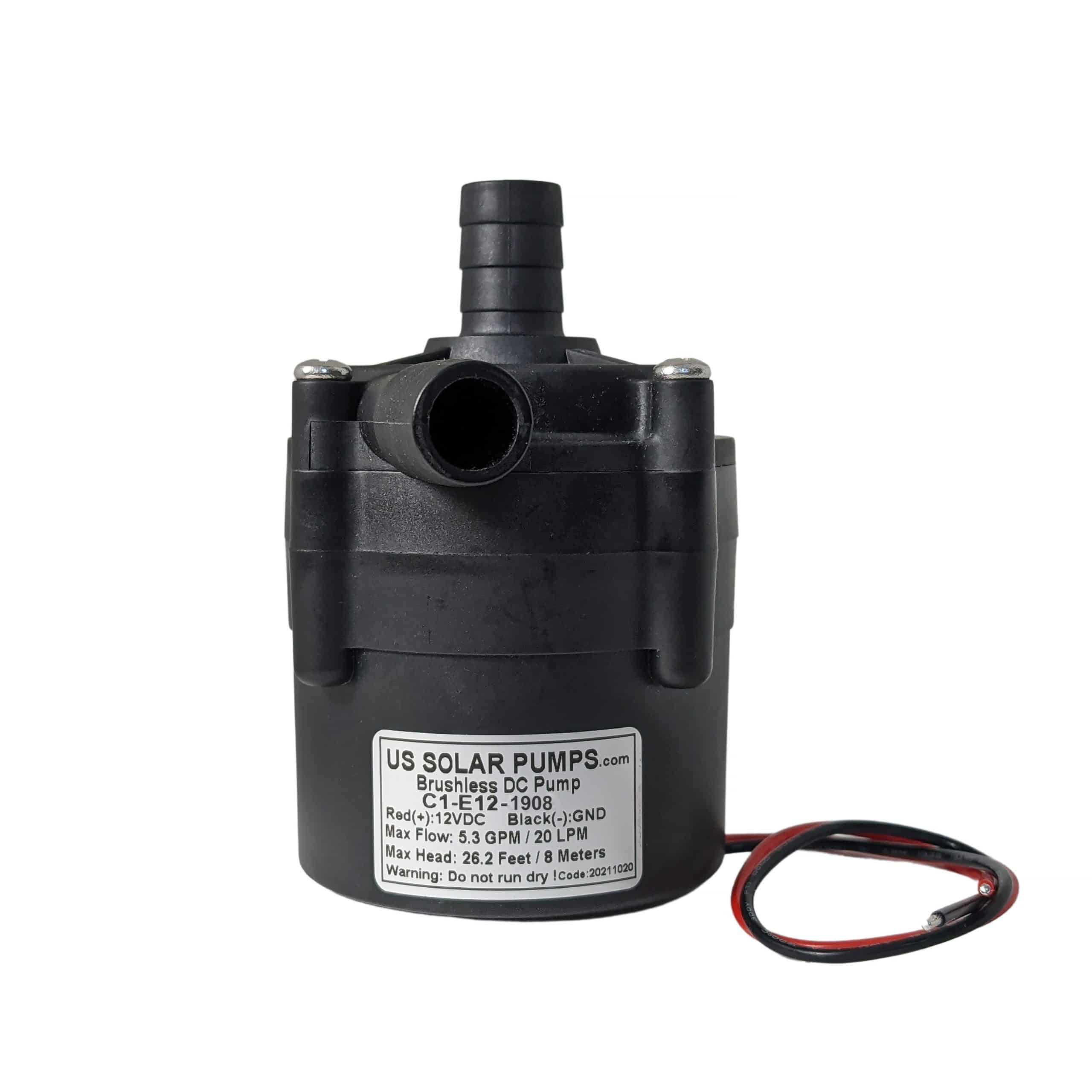

C1EC Zone 1 & 2 Replacement Pump

$97.50 – $110.00

Available Option:

C1EC 12V 20L
  • 12 Volts – 34 Watts – 2.8 Amps
  • Max Flow Rate – 5.3 GPM / 20 LPM
  • Max Head 26.2 Feet / 8 Meters
  • Barbed Inlet / Outlet – 1/2″x 1/2″
C1EC 12V 20L with 1 Hose Clamp
  • 12 Volts – 34 Watts – 2.8 Amps
  • Max Flow Rate – 5.3 GPM / 20 LPM
  • Max Head 26.2 Feet / 8 Meters
  • Barbed Inlet / Outlet – 1/2″x 1/2″
  • 1 Hose Clamp
C1EC 12V 20L with 2 Hose Clamps
  • 12 Volts – 34 Watts – 2.8 Amps
  • Max Flow Rate – 5.3 GPM / 20 LPM
  • Max Head 26.2 Feet / 8 Meters
  • Barbed Inlet / Outlet – 1/2″x 1/2″
  • 2 Hose Clamps
SKU: N/A Category:

Quantity based pricing table

Description

Download PDF for additional information

Download PDF File

View and download STP file here

Download STP File

Specifications of the Zone 1 & 2 Replacement Pump:

  • High Temperature Model
  • 12 Volts – 26.4 Watts – 2.2 Amps
  • Barbed Fittings
  • Inlet / Outlet – 3/4″x 3/4″ reduced to 1/2″x 1/2″
  • Max Flow Rate – 5.3 GPM / 20 LPM
  • Max Head – 26.2 F / 8 M
  • Max Pressure – 72.5 PSI / 5 Bar

Application of the Zone 1 & 2 Replacement Pump:

This is one of our C series micro centrifugal pumps.  This circulating pump is powered by a three-phase brushless DC motor. Our C series pumps are quiet, compact and lightweight.  The C1E has a variety of features. It has a seal-less design to prevent leakage. The pump also accepts a wide range of working voltage which provides stable performance for the pump.

The Zone 1 & 2 Replacement Pump is designed for general, commercial and industrial applications. This pump is ideal for all circulation pump purposes. It pumps fresh water and seawater. The C1E can also pump other liquids that are compatible with the pumps materials. The liquids need to be of similar viscosity to water.

Features of the Zone 1 & 2 Replacement Pump:

  • Highly efficient ECM three-phase brushless DC motor
  • Sustains a continuous 24-hour workload
  • Life expectancy of well over 20000 hours
  • Advanced magnetic drive technology
  • Sealed rotor-impeller and shaft for leak prevention
  • One moving part
  • Magnetically driven rotor-impeller
  • Single ceramic bearing
  • Highly precise and wear resistant
  • Dynamically balanced, unique closed impeller
  • Strong pressure performance
  • Smooth and steady flow
  • Ultra-quiet operation
  • Protection from stuck impellers, over-voltage, overload and over-current

Areas of Use of the Zone 1 & 2 Replacement Pump:

  • Heating water mattresses
  • Automotive air conditioning
  • Hot water circulating system
  • Electric cars: radiators, heaters
  • Computer CPU cooling circulation
  • Liquid transfer general purpose pumping
  • Fountain, aquariums and larger fish ponds
  • Circulating systems for homes, RV’s and boats
  • Electronics cooling water circulation chiller systems
  • Cleaning equipment, purification and water treatment

Follow us on Facebook, Twitter, Instagram, and YouTube.

Take a look at our other C Series Pumps such as the C1-B Circulating Pump, C1-A Circulating Pump, the C2 Circulating Pump, and the B10-C Circulating Pump.
