Specifications of the B3 Circulating Pump with PWM:

• 12 Volts – 5.16 Watts – 0.43 Amps
• Max Flow Rate – 1.5 GPM / 6 LPM
• Maximum Head – 8.2 F / 2.5 M
• Max Pressure – 72.5 PSI / 5 Bar
• Max Temperature – 120 F / 50 C
• Static PSI – 58.0 / 4 Bar
• Barbed Fittings
• Inlet / Outlet – 13.4mm x 8.8mm
• Food Grade
• Submersible; submersible temperatures max. 122 F/ 50C

Application:

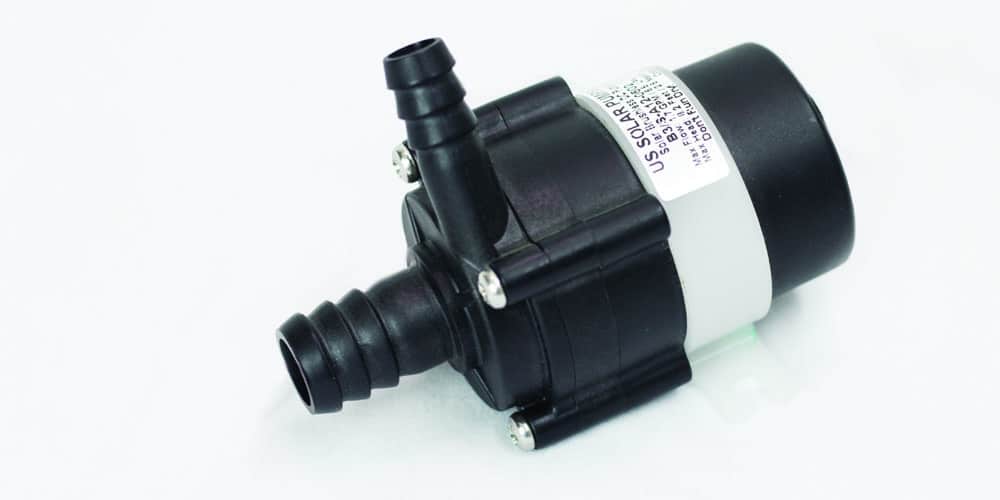

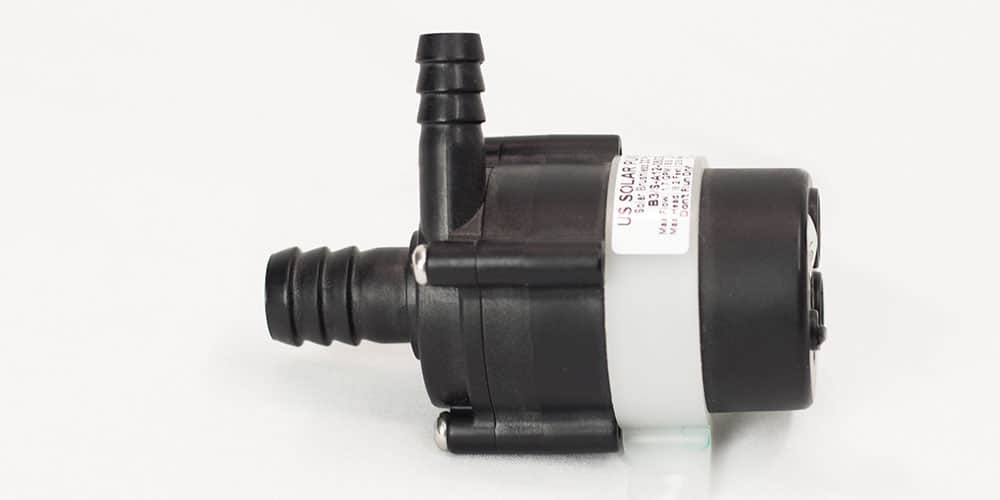

This is the B3 Circulating Pump with PWM. It is part of our B series micro centrifugal pumps.  A brushless DC motor powers the B3 Circulating Pump with PWM. This pump is quiet, compact and lightweight.

It has a seal-less design to prevent leakage. The B3 has a wide range of working voltage. This provides a stable performance for the pump. It has a high temperature resistance and is made with food grade materials.

The B3 is designed for general applications and also commercial and industrial applications. These pumps are ideal for all circulation pump applications. Also, they will pump fresh water, seawater, and other liquids that are compatible with the pumps materials and that are of similar viscosity to water.

Features:

• Compact, quiet and powerful
• Ideally suited for heavy duty workload
• Works well in places where space is at a premium
• Highly efficient ECM brushless DC motor
• Can sustain a continuous 24-hour workload
• Life expectancy of well over 20000 hours
• Advanced magnetic drive technology
• Leak-proof static-seal
• High density ceramic bearing and shaft
• Designed for high temperature endurance
• Dynamically balanced impeller for smooth ultra-quiet operation
• Unique design with only one moving part
• Contains a magnetically driven rotor/impeller that spins on a single ceramic bearing
• High heat resistance
• Made with food grade materials which meet the food and beverage industry needs

Areas of Use for the B3 Circulating Pump with PWM:

• Fountains and aquariums
• Gas mixing
• Coffee makers
• Juice machines
• Wine, syrup, water and drink dispensers
• Baking equipment
• Vending machines
• Nitrogen generation
• Ice cream dispensing
• Packaging equipment
• Hand sanitizing stations
• Soda beverage fountains
• Food preservation containers
