C1D Circulating Pump

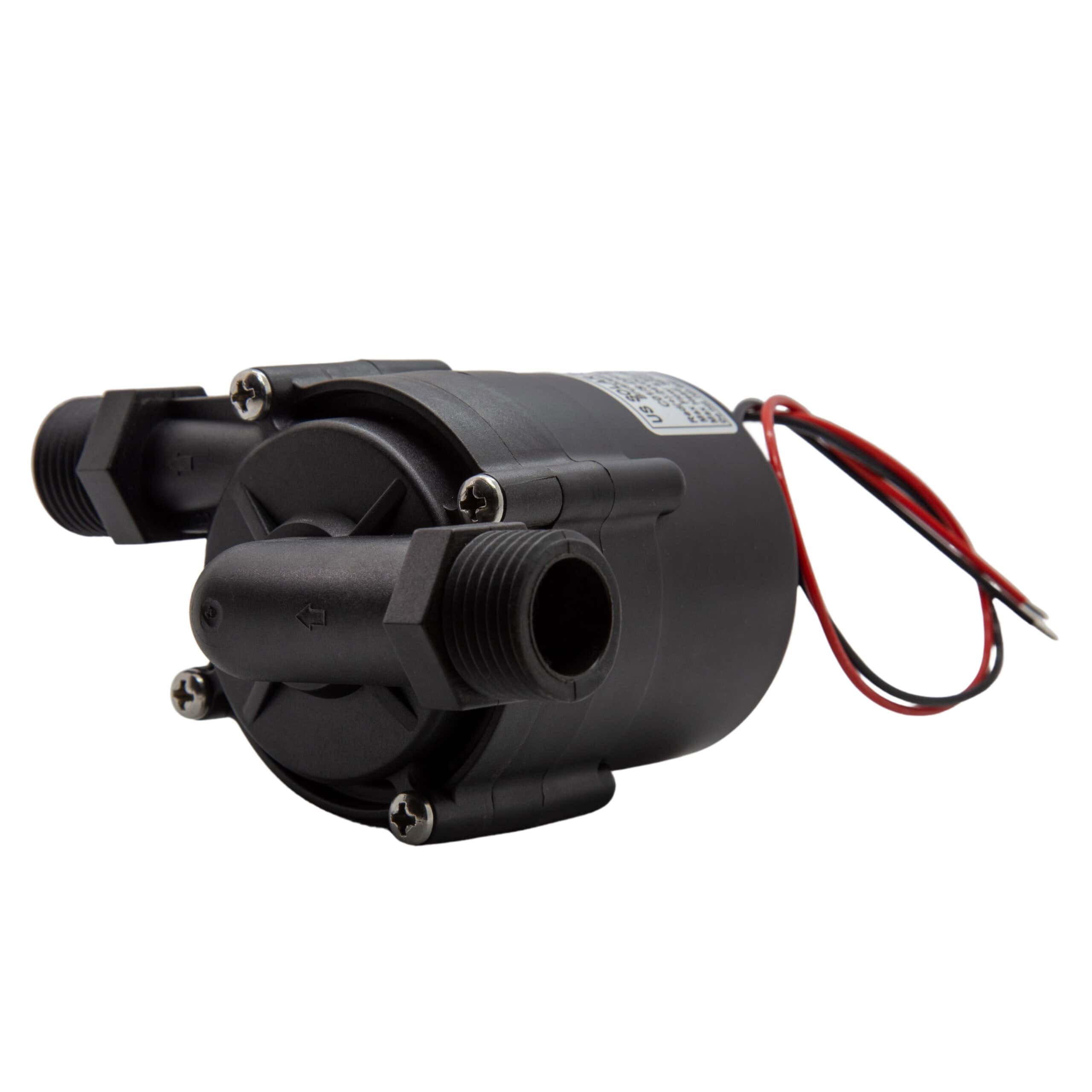

C1D Circulating Pump side shot

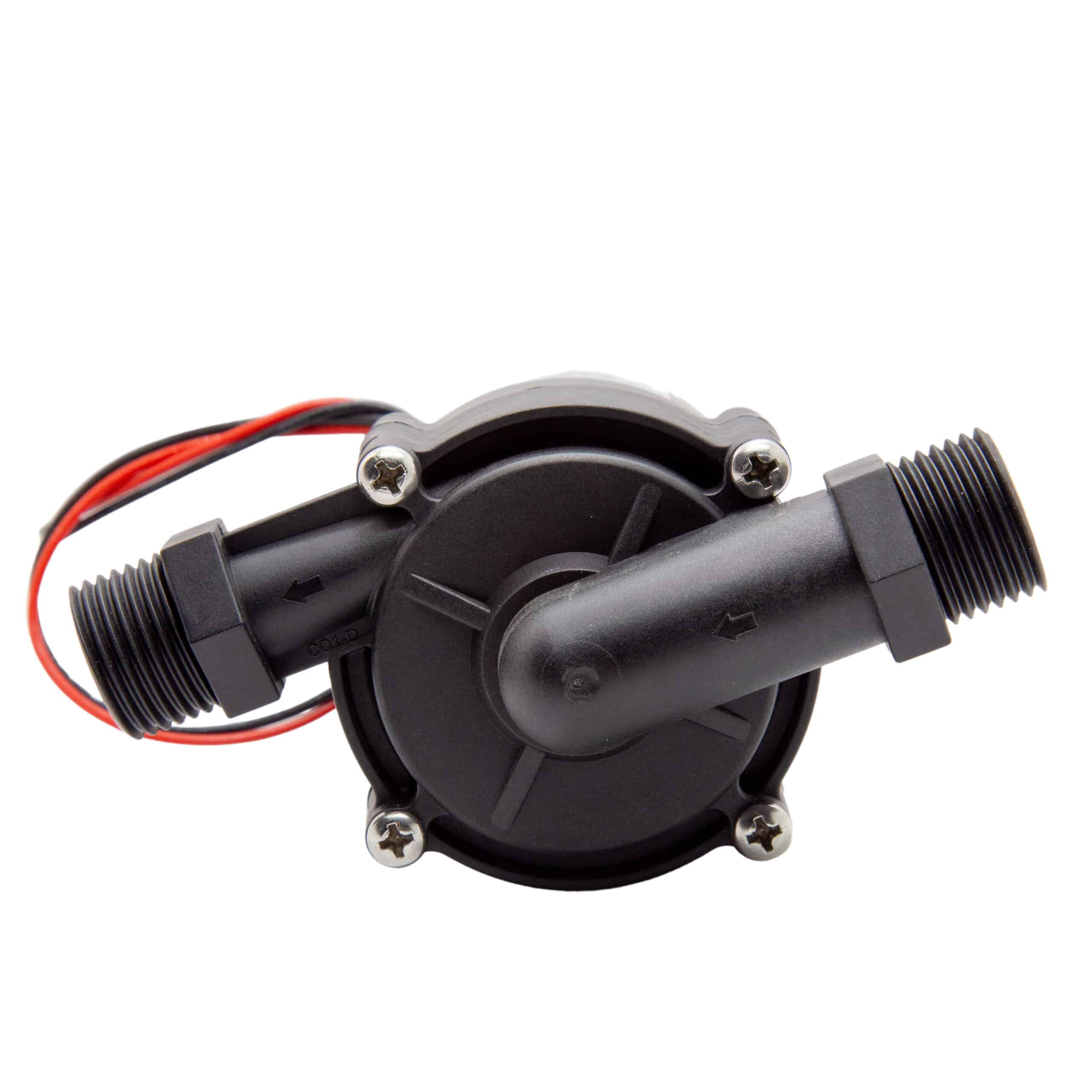

C1D Circulating Pump top shot

C1D Circulating Pump

$81.85

Available Options:

C1D 12V 20L
  • 12 Volts – 36 Watts – 3 Amps
  • Max Flow Rate – 5.2 GPM / 20 LPM
  • Max Temperature – 170 F / 76 C
  • Barbed Inlet / Outlet – 1/2″x 1/2″

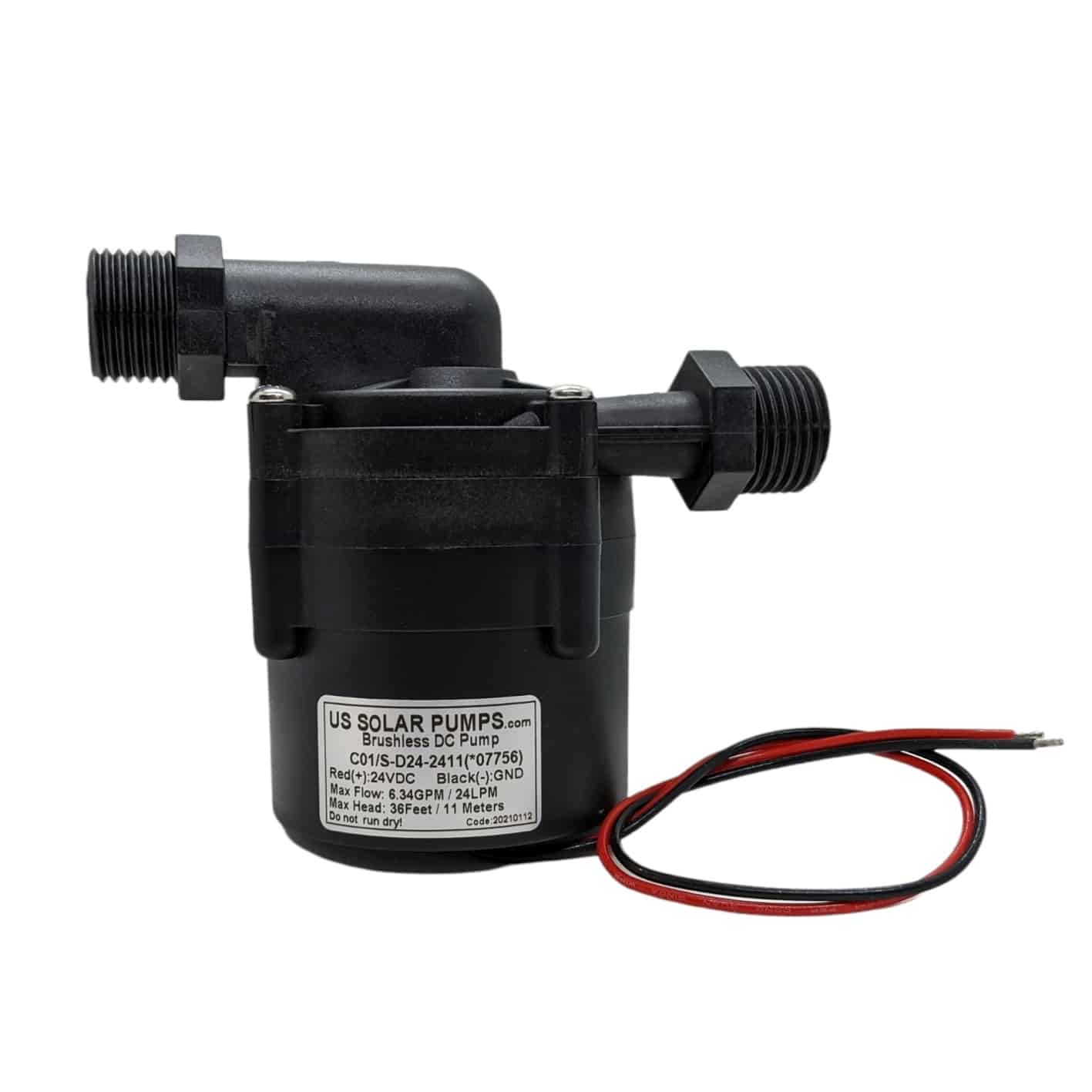

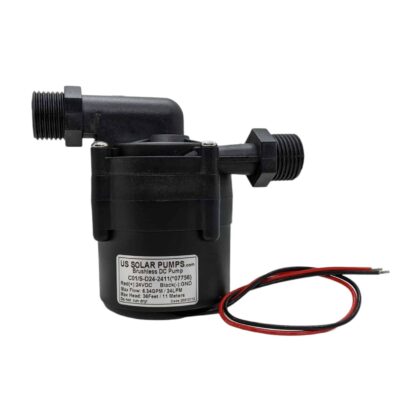

C1D 24V 24L
  • 24 Volts – 48 Watts – 2 Amps
  • Max Flow Rate – 6.34 GPM / 22 LPM
  • Max Temperature – 170 F / 75 C
SKU: N/A Category:

Quantity based pricing table

Description

Download PDF for additional information

Download PDF File

View and download STP file here

Download STP File

Specifications of the C1D Circulating Pump:

  • Max Temperature – 170 F / 77 C
  • Static PSI – 58.0 / 4 Bar
  • Threaded Fittings
  • Inlet / Outlet – 1/2″x 1/2″

C1D Circulating Pump Applications:

This is one of our C series micro centrifugal pumps.  This circulating pump is powered by a three-phase brushless DC motor. Our C series pumps are quiet. They are compact and lightweight.  The C1D has a variety of features. It has a seal-less design to prevent leakage. The pump also accepts a wide range of working voltage.  This provides stable performance for the pump.

The C1D is designed for general, commercial and industrial applications. This pump is ideal for all circulation pump purposes. It pumps fresh water and seawater. The C1D can also pump other liquids that are compatible with the pumps materials. The liquids need to be of similar viscosity to water.

Features of the C1D Circulating Pump:

  • Highly efficient ECM three-phase brushless DC motor
  • Sustains a continuous 24-hour workload
  • Life expectancy of well over 20000 hours
  • Advanced magnetic drive technology
  • Sealed rotor-impeller and shaft
  • Leak prevention
  • One moving part: the magnetically driven rotor-impeller on a single ceramic bearing
  • Highly precise
  • Wear resistant
  • Unique closed impeller
  • Dynamically balanced
  • Steady flow and strong pressure performance
  • Smooth, ultra-quiet operation
  • Protection from stuck impellers
  • Over-voltage, overload and over-current protection

Areas of Use of the C1D Circulating Pump:

  • Heating water mattresses
  • Automotive air conditioning
  • Hot water circulating system
  • Electric cars: radiators, heaters
  • Computer CPU cooling circulation
  • Liquid transfer general purpose pumping
  • Fountain, aquariums and larger fish ponds
  • Circulating systems for homes, RV’s and boats
  • Electronics cooling water circulation chiller systems
  • Cleaning equipment, purification and water treatment

Follow us on Facebook, Twitter, Instagram, and YouTube.

Or take a look at our other C Series Pumps such as the C1B Circulating Pump, C1A Circulating Pump, the C7 Circulating Pump, and the B10-C Circulating Pump.

If you have any questions about the C1D Circulating Pump, please feel free to contact us and we will be happy to help you!
