C2 Automotive / Marine Pump 12V
C2 Automotive / Marine Pump 12V
C2 Automotive / Marine Pump 12V
C2 Automotive / Marine Pump 24V - aftermarket ev heat pump - super charger automotive pump - car water pumps - automotive pump
C2 Automotive / Marine Pump 24V
C2 Automotive / Marine Pump 24V

C2 Automotive / Marine Pump

$126.05

Available Options:

C2 12V 34L
  • 12 Volts – 54 Watts – 4.5 Amps
  • Max Flow Rate –  8.9 GPM / 34 LPM
  • Max Temperature – 167 F / 75 C
  • Max Head Flow – 8 M / 26 Feet
C2 24V 37L
  • 24 Volts – 60 Watts – 2.5 Amps
  • Max Flow Rate – 9.77 GPM / 37 LPM
  • Max Temperature – 167 F / 75 C
  • Max Head Flow – 8.5 M / 27.8 Feet
SKU: N/A Category:

Quantity based pricing table

Description

Download PDF for additional information

Download PDF File

View and download STP file here

Download STP File

Specifications of the C2 Automotive / Marine Pump:

  • Static psi – 58.0 / 4 Bar
  • Threaded Fittings
  • Inlet / Outlet – 1/2″x 1/2″
  • Maximum Head – 29.52 F / 9 M
  • Max Temperature – 170 F / 75 C

Application of the C2 Automotive / Marine Pump:

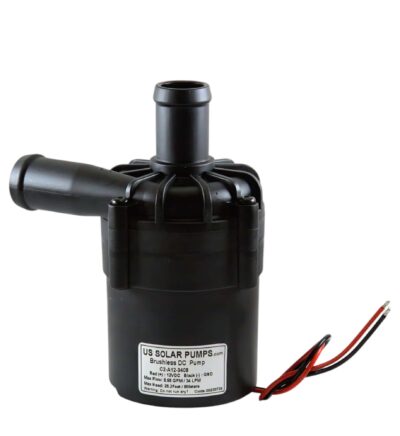

This is one of our C series micro centrifugal pumps.  This circulating pump is powered by a three-phase brushless DC motor. Our C series pumps are quiet. They are compact and lightweight.  The C2 has a variety of features. It has a seal-less design to prevent leakage. The pump also accepts a wide range of working voltage.  This provides stable performance for the pump.

The C2 Automotive / Marine Pump is designed for general, commercial and industrial applications. This pump is ideal for all circulation pump purposes. It pumps fresh water and seawater. The C2 can also pump other liquids that are compatible with the pumps materials. The liquids need to be of similar viscosity to water.

Features of the C2 Automotive / Marine Pump:

  • Highly efficient ECM three-phase brushless DC motor
  • Sustains a continuous 24-hour workload
  • Life expectancy of well over 20000 hours
  • Advanced magnetic drive technology
  • Sealed rotor-impeller and shaft
  • Leak prevention
  • One moving part: the magnetically driven rotor-impeller
  • Highly precise single ceramic bearing
  • Wear resistant
  • Unique closed impeller
  • Dynamically balanced
  • Strong pressure performance, steady flow
  • Smooth, ultra-quiet operation
  • Protection from stuck impellers
  • Over-voltage and overload protection
  • Over-current protection

Areas of Use of the C2 Automotive / Marine Pump:

  • Heating water mattresses
  • Automotive air conditioning
  • Hot water circulating system
  • Electric cars: radiators, heaters
  • Computer CPU cooling circulation
  • Liquid transfer general purpose pumping
  • Fountain, aquariums and larger fish ponds
  • Circulating systems for homes, RV’s and boats
  • Electronics cooling water circulation chiller systems
  • Cleaning equipment, purification and water treatment

Follow us on Facebook, Twitter, Instagram, and YouTube.

Or take a look at our other C Series Pumps such as the C1B Circulating Pump, C1A Circulating Pump, and the C1D Circulating Pump.

If you have any questions or would like more information, feel free to contact us!
